The CBI series with integrated MODBUS RTU RS485 protocol can be connected to RTU modules and SCADA systems, providing easy access to battery status, DC-UPS functions and all application data.

Request information Download

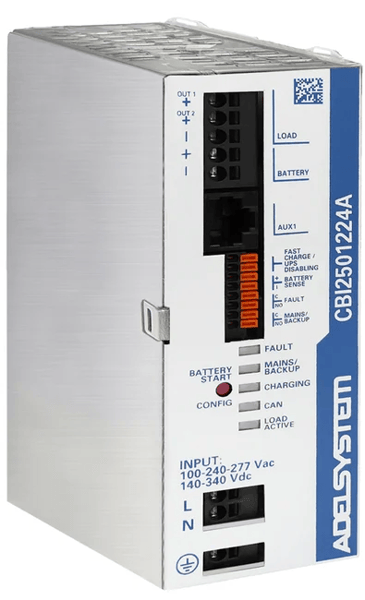

The CBI2501224A combines the functionality of a power supply, backup, battery charger and tester in a single module only 50mm wide.

Selectable load output: 12 Vdc 12 A o 24 Vdc 10 A
Wide input voltage range: 100–277 Vac e 140–340 Vdc
Modbus RTU RS485
Charging profile for Lead, GEL, AGM, Li-Ion and LiFePO4

The Push-In connectors reduce wiring time while maintaing maximum safety.

The line of DC-UPS with MODBUS RTU RS485 interface consists of the following models: CBI2501224A, CBI2801224A, CBI1235A, CBI2420A and CBI4810A.

DC-UPS with MODBUS interface allow the operator to monitor and configure devices remotely. The Modbus RTU RS485 protocol can be integrated into SCADA and communication systems without any limitations.

Modbus RTU RS485 and Battery test

Configure +100 parameters, manage load output switch and test batteries remotely via Modbus RTU RS485.

Advanced monitoring of State of Charge (SoC) and State of Health (SoH) enables you to predict when to replace the batteries, preventing unexpected failures and facilitating predictive mainteinance.

The MODBUS RTU RS485 connection can be used to connect CBI to the Adelviewsystem software for configuring them. The Adelviewsystem software can be downloaded free of charge from the web and requires no license on a PC.

The MODBUS RTU RS485 Adelsystem map consists of more than 100 parameters, divided into different operations:

Monitoring;
History;
Configuration;
Alarming;
Data Logging.

Key Features

Output voltage 12, 24, 48Vdc, even in the absence of power supply

Output current 2.5A ÷ 25A, even in the absence of AC mains

Fault signaling via relay contact, blink code, and Modbus RTU and TCP/IP protocols

Automated power sharing of available power between load and battery charging

Output power: 250W, 280W, 500W, 600W

Power boost, up to 3 times the rated current available. Ability to handle high current surges

DC-UPS and battery self-diagnosis: high voltage; sulfated battery; reverse connection; possible shorted element; short circuit protection

"Main or back-up" and "battery failure/discharge" signaling relays with galvanically isolated output contacts

Accessories: battery temperature sensor, external display, PC and Modbus connection cables

Fast battery recharging for cyclic applications

Ultracompact design

Temperature operation range -40 ÷ 70°C

Datasheet & Manual

All in one 12Vdc with Modbus RTU RS485
NAME	INPUT	OUTPUT	DATA SHEET	MANUALS	TECHNICAL DRAWINGS	PROTOCOL COMMUNICATION
CBI1235A	110-240-277Vac	35A

All in one 24Vdc with Modbus RTU RS485
NAME	INPUT	OUTPUT	DATA SHEET	MANUALS	TECHNICAL DRAWINGS	PROTOCOL COMMUNICATION
CBI2420A	110-240-277Vac	20A

All in one 48Vdc with Modbus RTU RS485
NAME	INPUT	OUTPUT	DATA SHEET	MANUALS	TECHNICAL DRAWINGS	PROTOCOL COMMUNICATION
CBI4810A	110-240-277Vac	12.5A

All in one 12-24Vdc with Modbus RTU RS485
NAME	INPUT	OUTPUT	DATA SHEET	MANUALS	TECHNICAL DRAWINGS	PROTOCOL COMMUNICATION
CBI2801224A	110-240-277Vac	280W
CBI2501224A	110-240-277Vac 140-340 Vdc	250W

Temperature sensor
NAME	INPUT	OUTPUT	DATA SHEET	MANUALS	TECHNICAL DRAWINGS
RJTEMP
