CB

The CB line is a range of compact, intelligent battery chargers with different charging voltages of 12V, 24V and 36V. Adel system battery chargers are recognized worldwide for their reliability and performance by manufacturers of generator sets and fire pumps.

They are switching technology devices with microcontroller, Battery Care technology for battery charging management and fault protection.

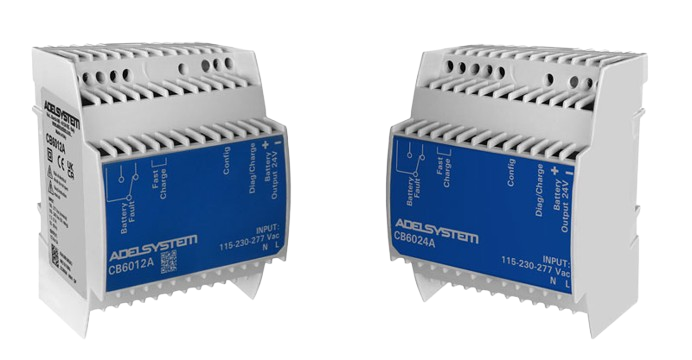

CB6012-e-24A
  • Communication protocols: Modbus RTU, CANBUS J1939
  • Battery status diagnostics (AGM Open Lead Acid/Sealed Lead Acid, Gel, Ni-Cd, Li-Ion, LiFePO4).
  • Most appropriate charging curve selectable to maximize system efficiency
  • Durability of the battery over time while enhancing its performance
  • Equipped with relays for power failure and battery fault signaling
  • Compliant with the latest battery management as well as electrical safety standards
  • DIN rail mounting.

Key Features

Output voltage 12, 24, 36Vdc

Output voltage 12, 24, 36Vdc

Output current 2.5A ÷ 25A

Output current 2.5A ÷ 25A

3 levels of charging: fast charging; trickle charging; ground battery recovery charging

3 levels of charging: fast charging; trickle charging; ground battery recovery charging

System self-diagnosis: high voltage; sulfated battery; reverse connection; possible shorted element; short circuit protection

System self-diagnosis: high voltage; sulfated battery; reverse connection; possible shorted element; short circuit protection

"Main or back-up" and "battery failure/discharge" signaling relays with galvanically isolated output contacts

"Main or back-up" and "battery failure/discharge" signaling relays with galvanically isolated output contacts

Accessories: battery temperature sensor, external display

Accessories: battery temperature sensor, external display

Ultra-compact size

Ultra-compact size

Temperature range -40 to 70°C

Temperature range -40 to 70°C

Datasheet & Manual

12Vdc Battery Charger
NAME INPUT OUTPUT DATA SHEET MANUALS TECHNICAL DRAWINGS
CB123A 110-240-277 Vac 3A file-pdf-solid (1) file-pdf-solid (1)
CB1210A 110-240-277 Vac 10A file-pdf-solid (1) file-pdf-solid (1)
CB1235A 110-240-277 Vac 35A file-pdf-solid (1) file-pdf-solid (1)
CB6012A 110-240-277 Vac 5A file-pdf-solid (1) file-pdf-solid (1)
Battery Charger 12Vdc
NAME INPUT OUTPUT DATA SHEET MANUALS TECHNICAL DRAWINGS
CB123A/48 48Vdc 3A file-pdf-solid (1) file-pdf-solid (1)
Battery Charger 12/24Vdc
NAME INPUT OUTPUT DATA SHEET MANUALS TECHNICAL DRAWINGS
CB12245A 110-240-277 Vac 120W file-pdf-solid (1) file-pdf-solid (1)
CB12245AJ 110-240-277 Vac 120W file-pdf-solid (1) file-pdf-solid (1)
CB122410A 110-240-277 Vac 280W file-pdf-solid (1) file-pdf-solid (1)
Battery Charger 24Vdc
NAME INPUT OUTPUT DATA SHEET MANUALS TECHNICAL DRAWINGS
CB243A 110-240-277 Vac 3A file-pdf-solid (1) file-pdf-solid (1)
CB2410AC 110-240-277 Vac 10A file-pdf-solid (1) file-pdf-solid (1)
CB2420A 110-240-277 Vac 20A file-pdf-solid (1) file-pdf-solid (1)
CB6024A 110-240-277 Vac 3A file-pdf-solid (1) file-pdf-solid (1)
Battery Charger 30Vdc
NAME INPUT OUTPUT DATA SHEET MANUALS TECHNICAL DRAWINGS
CB304A 110-240-277 Vac 3A file-pdf-solid (1) file-pdf-solid (1)
Battery Charger 36Vdc
NAME INPUT OUTPUT DATA SHEET MANUALS TECHNICAL DRAWINGS
CB363A 110-240-277 Vac 3A file-pdf-solid (1) file-pdf-solid (1)
