CB with CANBUS J1939

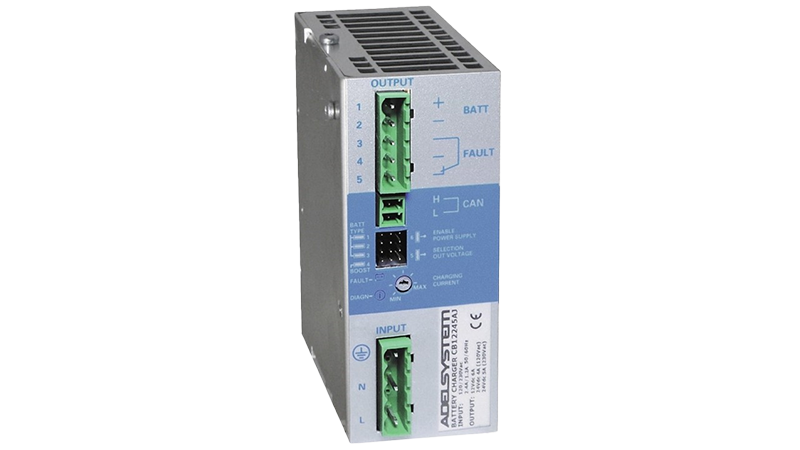

The CB12245AJ charger has an ultra-compact design, only 45mm wide, minimizing the space required inside the cabinet. The module is dual voltage selectable, 12 and 24 V, with a charging current of up to 6A.

cbb_canbus_j1939
canbus j1939_1.jpg

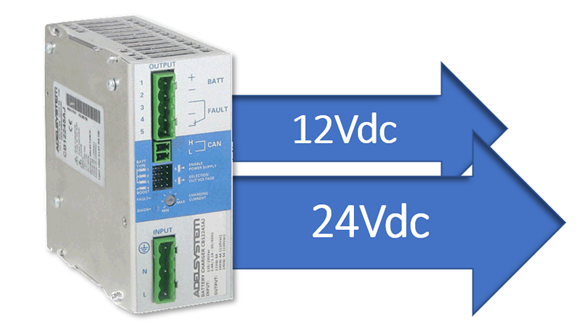

The CB12245AJ charger has an ultra-compact design, only 45mm wide, which minimizes the space required inside the cabinet. The module is dual voltage selectable, 12V and 24V, with a charging current of 6A at 12V and 5A at 24V.

The CB12245AJ has the CANBUS J1939 communication protocol which allows monitoring of more than 50 parameters regarding the status of the charger and connected batteries. CAN communication can be enabled via the connector on the front of the product.

Through the new multicolored LED, the CB60 series warns of battery defects: reverse polarity, incorrect battery voltage, battery not connected, and battery with shorted cells.

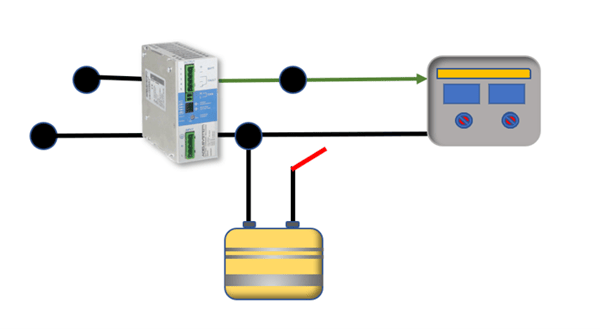

The charger is equipped with the "Power Supply" feature, which enables it to activate the power function to provide power even when the battery is disconnected. The device, with mains input present, provides power to the connected load like a power supply unit.

canbus j1939_2.jpg

Key Features

Datasheet & Manual

Battery Charger 12/24Vdc
NAME INPUT OUTPUT DATA SHEET MANUALS TECHNICAL DRAWINGS
CB12245AJ 110-240-277 Vac 120W file-pdf-solid (1) file-pdf-solid (1)
